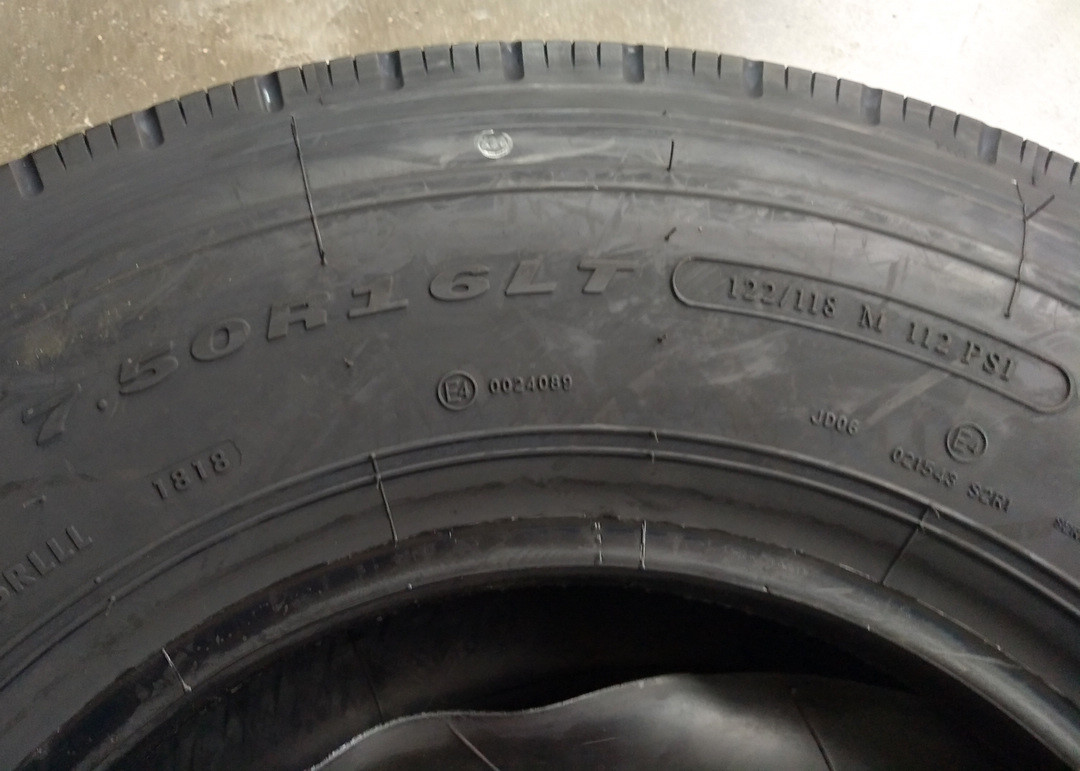

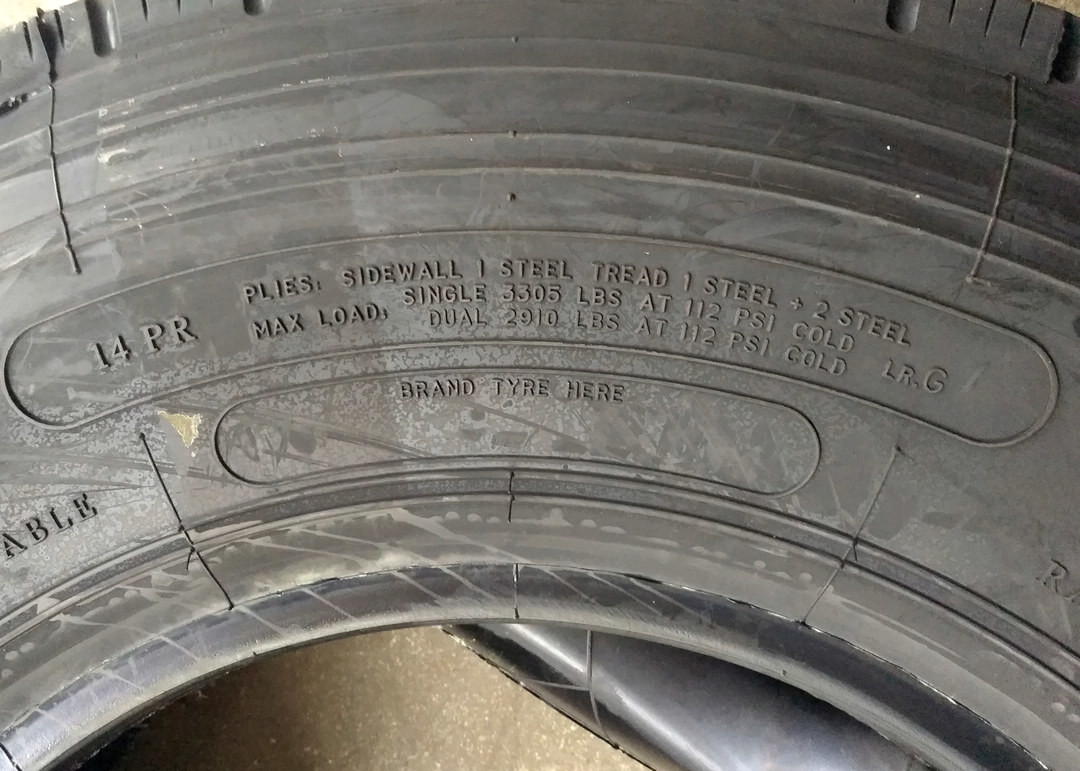

Fuel Efficiency ALL-Steel Radial Ply Truck and Bus Tires 7.50R16LT
Features
The all-steel radial ply tire of 7.50R16LT, which having a tread pattern of four main straight grooves combined with zigzag-shaped sipes designs ensuring its low rolling resistance and fuel efficiency, it is suitable for all-positions of medium duty trucks running on highway and city roads. It is available in 16 sizes covering most of sizes for 15-inch, 16-inch, 20-inch, 17.5-inch and 19.5-inch diameter rims respectively.
The application of the low rolling resistance tread compound enhances fuel efficiency of this truck bus radial tire of 7.50R16LT, and help vehicle fleets to save the expenditures of the fuel.

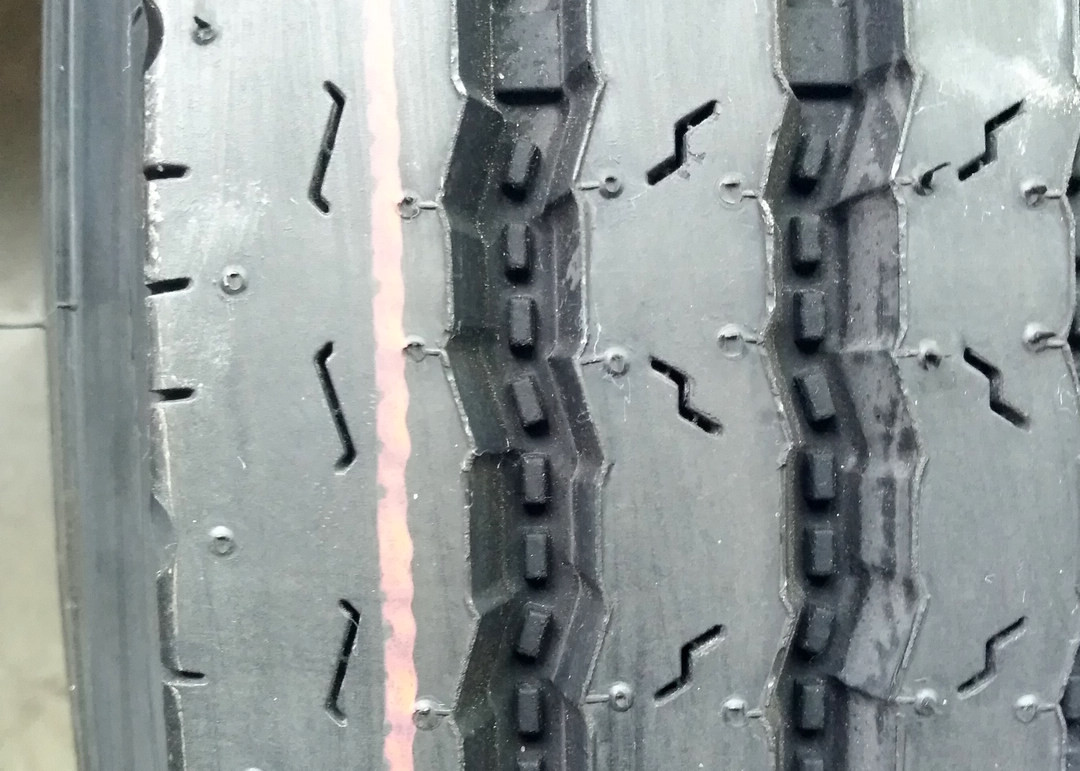

The design of zigzag-shaped sipes with rational distribution can increase tire’ grip performance on the dry and wet roads, and resist against uneven wears.
The shoulder part of the tire is adapted closed designed which enlarge footprint contact area and improve tread wear, for the purpose to restrain heat built-up, a cooler running tread compound is been applied.
The stone retention in the grooves will cause many early damaged such as groove cracking and tread slab base being penetrating, and the design of stone ejected under the bottom of grooves can effective against stone trapping in the grooves and increase self-cleaning of the tire.
Specification
| Size | Ply | Load Index | Speed index | Standard Rim | Max load(Kg) | New tire inflated Dimensions(mm) | Tube | Operation Norm |
| Single | Dual | Section Width | Overall Diameter |
| 8.25R15TR | 12 | 126/124 | M | 6.50 | 1700 | 1600 | 236 | 847 | TT | TRA |
| 8.25R15TR | 14 | 129/127 | L | 6.50 | 1850 | 1750 | 236 | 847 | TT | TRA |
| 7.50R16LT | 12 | 120/116 | M | 6.00G | 1400 | 1250 | 215 | 805 | TT | GB |
| 7.50R16LT | 14 | 122/118 | M | 6.00G | 1500 | 1320 | 215 | 805 | TT | GB |
| 8.25R16LT | 12 | 123/119 | M | 6.50H | 1550 | 1360 | 235 | 865 | TT | GB |
| 8.25R16LT | 14 | 126/122 | L | 6.50H | 1700 | 1500 | 235 | 865 | TT | GB |
| 8.25R16LT | 16 | 128/124 | L | 6.50H | 1800 | 1600 | 235 | 865 | TT | GB |
| 7.50R20 | 12 | 128/126 | L | 6.00 | 1800 | 1700 | 215 | 935 | TT | GB |
| 7.50R20 | 14 | 130/128 | K | 6.00 | 1900 | 1800 | 215 | 935 | TT | GB |
| 8.25R20 | 12 | 133/131 | L | 6.50 | 2060 | 1950 | 236 | 974 | TT | GB |
| 8.25R20 | 14 | 136/134 | L | 6.50 | 2240 | 2120 | 236 | 974 | TT | GB |
| 8.25R20 | 16 | 139/137 | L | 6.50 | 2430 | 2300 | 236 | 974 | TT | GB |
| 8.5R17.5 | 12 | 121/120 | M | 6.00 | 1450 | 1400 | 215 | 802 | TL | ETRTO |
| 9.5R17.5 | 14 | 129/127 | M | 6.75 | 1850 | 1750 | 240 | 842 | TL | ETRTO |
| 9.5R17.5 | 18 | 143/141 | M | 6.75 | 2725 | 2575 | 240 | 842 | TL | ETRTO |
| 8R19.5 | 12 | 124/122 | M | 6.00 | 1600 | 1500 | 203 | 859 | TL | TRA |
Speed index
| Speed Index | B | C | D | E | F | G | J | K | L | M | N | P | Q | R |
| Km/h | 50 | 60 | 65 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 |
Application
As the leading tire specialist, WALSTONE insist that customer always be first, any resolution for customer from ours is being professional and rigorous, to satisfy the customer more requirements with less costs.
It is not simple slogan, such as protecting environment for generations to come, actually economical fuel efficiency can help vehicles to save a lot of expenses of fuel and reduce operating costing. Special for those medium duty trucks running between the cities.
Compared with the triple zigzag grooves, the tire with tread pattern of four main straight grooves is being benefited in rolling resistance, lower rolling resistance ensure low fuel efficiency, and the design of sipes on the tread surfaces enhances the grip performance on the dry and wet roads, so this truck bus radial tire of 7.50R16LT is suitable for all-position of medium duty trucks.
